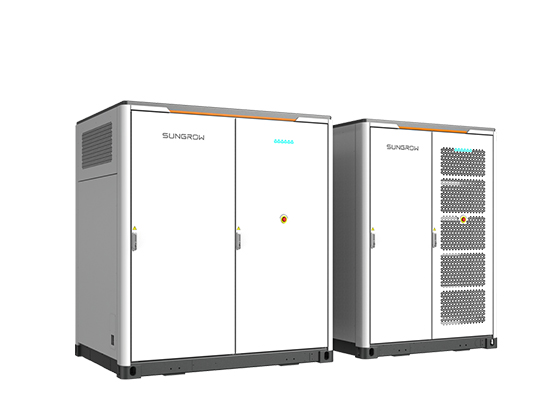

Home/Public Equipment/Energy Conservation Equipment/ Liquid Cooling Commerical Energy Storage System(Grid-Connected Version)---ST570kWh-250kW-2h/
Yangguang Dianyuan
AnHui-HeFei, China-
LOW COSTS
Highly integrated ESS for easy transportation and O&M
All pre-assembled, no battery module handling on site
8 hour installation to commission
-
SAFE AND RELIABLE
DC electric circuit safety management includes fast breaking and anti-arc protection
Multi level battery protection layers formed by discreet standalone systems offer impeccable safety
Intelligent leakage protection and liquid refilling system
-
EFFICIENT AND FLEXIBLE
Intelligent liquid cooling ensures higher efficiency and longer battery cycle life
Modular design supports parallel connection and easy system expansion
Front Cable Entry, save cable tray
-
SMART AND ROBUST
Fast state monitoring and faults record enables pre-alarm and faults location
Integrated battery performance monitoring and logging
Battery cabinet parameters :
ST535kWh - 250kW - 2h
Cell Type
Lithium Iron Phosphate
System Battery Configuration
320S2P
DC Side Battery Capacity @BOL
573kWh
Battery Voltage Range
864~1168V
Battery Cabinet Dimensions (Width * Height * Depth)
218x02450x1730mm (Single Cabinet)
Battery Cabinet Weight
6100kg (Single Cabinet)
Protection Class
IP54
Vibration Resistance Class
C3
Operating Humidity Range
0 - 95% (No Condensation)
Operating Temperature Range
-30 to 50°C (>45°C with Derating)
Maximum Operating Altitude
3000m
Battery Cabinet Cooling Method
Intelligent Liquid Cooling
Fire Safety Configuration
Aerosol, Combustible Gas Detection + Exhaust
Communication
Ethernet
Communication Protocol
Modbus TCP
Compliance Standards
GB/T 36276, GB/T 34131
PCS cabinet parameters :ST570kWh-250kW-2h
Rated Output Power 250kVA @ 45°C
Total Current Waveform Distortion < 3% (at rated power)
DC Component < 0.5% (at rated power)
Rated Grid Voltage 400V
Grid Voltage Range 360 - 440V
Rated Grid Frequency 50Hz
Grid Frequency Range 45 - 55Hz
PCS Cabinet Dimensions (Width * Height * Depth) 1800*2450*1230mm
Weight 1600kg
Protection Class IP54
Vibration Resistance Class C3
Operating Humidity Range 0 - 95% (no condensation)
Operating Temperature Range -30 to 50°C (> 45°C with derating)
Maximum Operating Altitude 3000m
Communication Ethernet
Communication Protocol Modbus TCP
Compliance Standards GB/T 34120, GB/T 34133
